LIVING HOMES A+ | WOODEN CONSTRUCTION | DOME PARTS

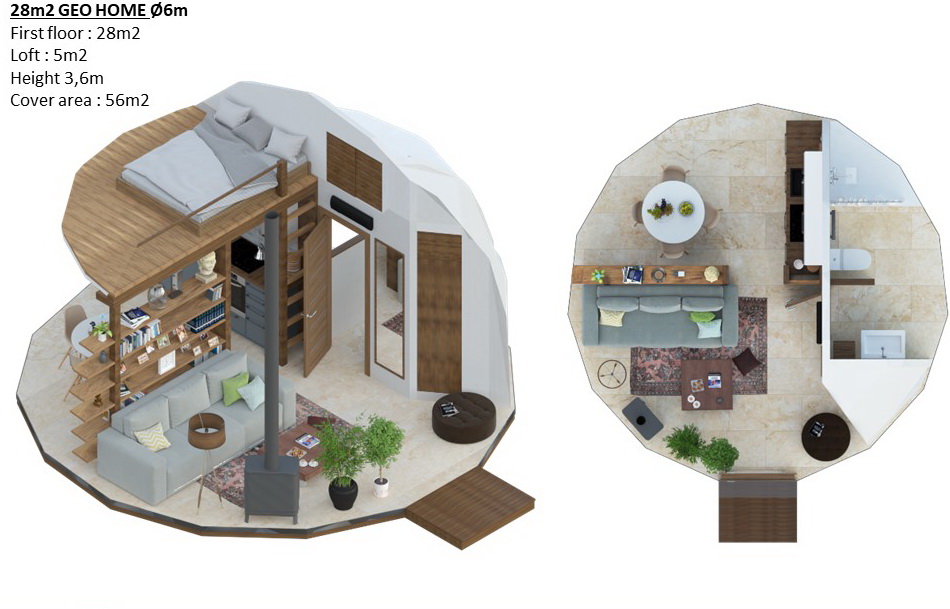

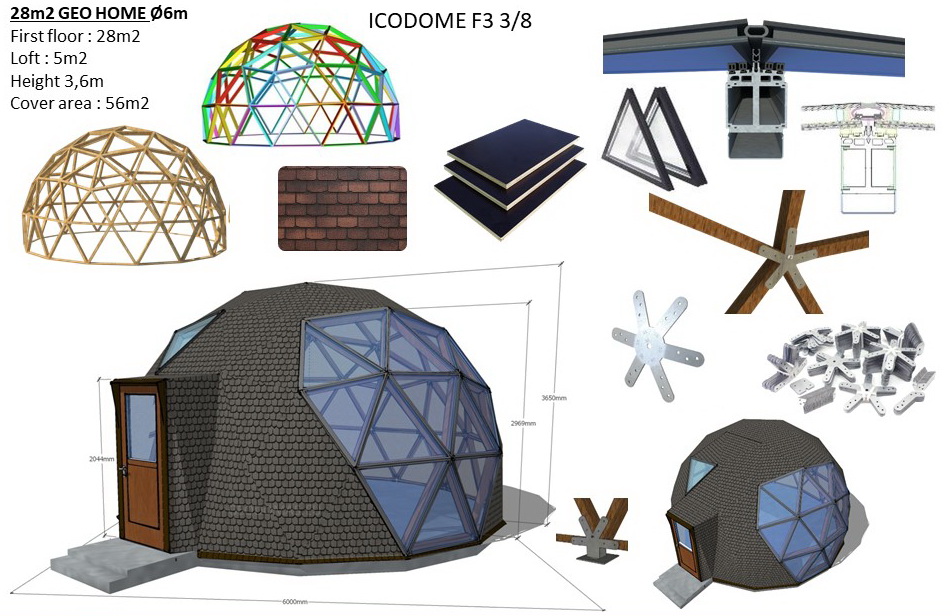

28m2 HOME-SAUNA KIT Ø6m F4 H3,65m
DOME PROPERTIES :
HEIGHT EDITION
Height:3,65 m
Diameter:6 m
Floor Area:28 sqm
Loft Area:5 sqm
Cover Area:56 sqm
Request base quote
- Certified structure
- Made in Lithuania
- Consultation in 2–4 h
DOME PACKING
| Weight | 380 kg |
|---|---|
| Dimensions | 120 × 200 × 200 cm |
| packing | 2x Euro Pallet |
| shipments | Sea containers, Cargo Transportation, Door-To-Door |
DOME ORDER NOTES
- Production and order picking of BASIC SET : 3-4 weeks.
- Dome assembly documentation include.
- Set sealed on pallet, disposable packaging. Parts marked, shipped from Vilnius warehouse EXV, Lithuania.
- Delivery and installation work are not included in the price. After checking the manager will give you a special offer for additional services.
- Warranty 3 years, service life 20-50 years for different materials.
- Place an advance order and we will contact you.
MAIN MATERIALS FOR ASSEMBLING ROUNDED HOUSE OR SAUNA | DOME PARTS
-
HOME technical Drawings

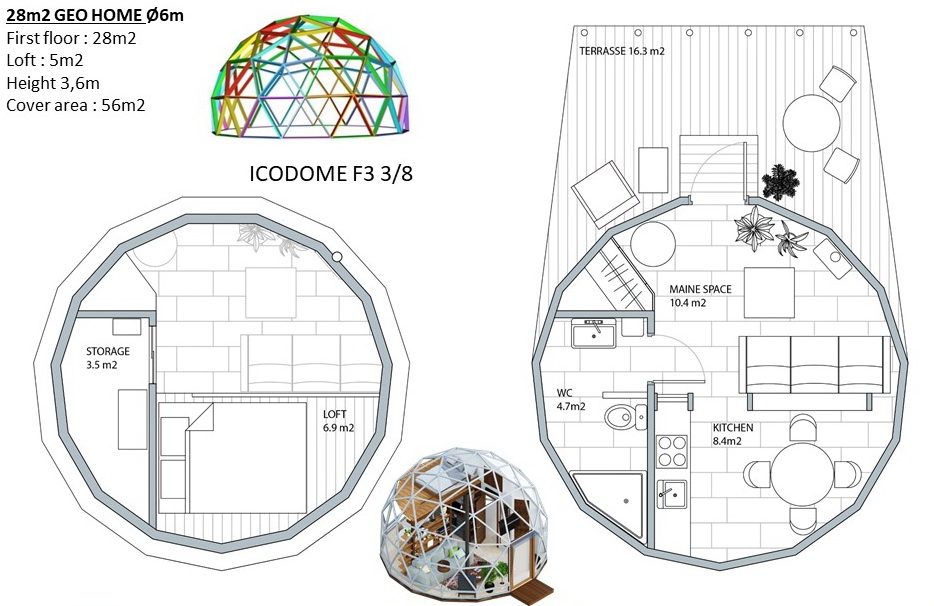

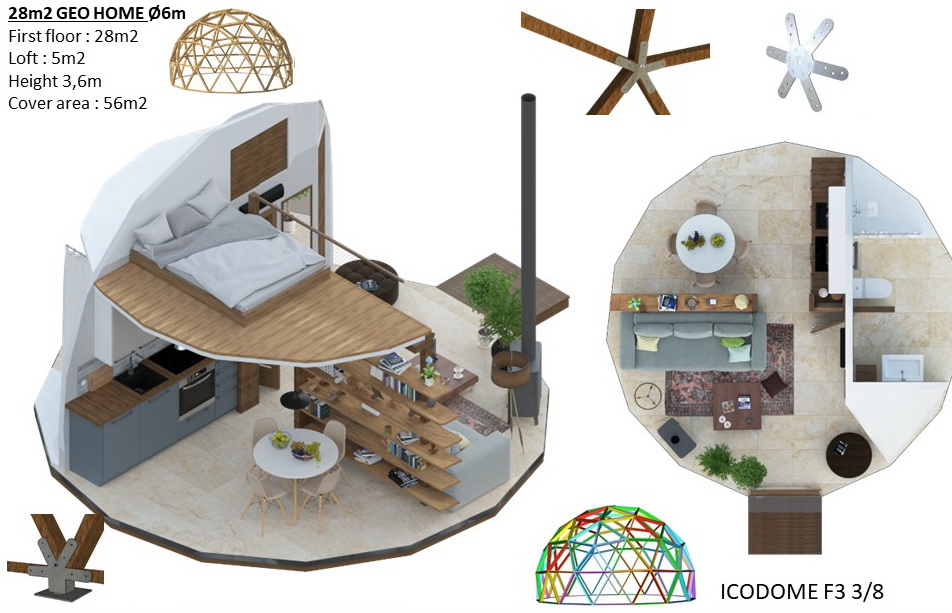

- Elevation Dome, floor plans, room plan, areas calculation
- Wall concrete construction, all wall layers constructions.

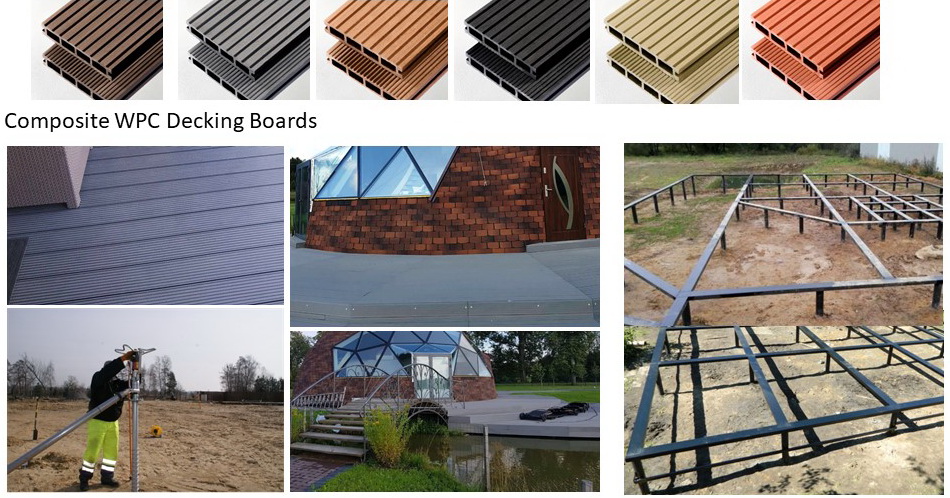

- Foundation & Flooring Construction
- Interior wall decoration, wall, floor, plates for all rooms.
- Interior & exterior lighting concept scheme
- Plumbing and sewage disposal. Indoor installation schemes
- Heating, ventilation and air conditioning, installation schemes

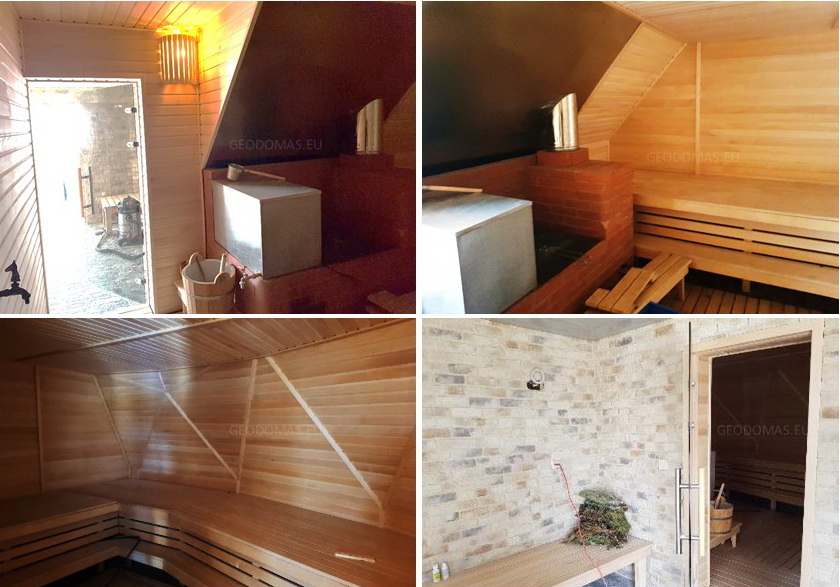

SAUNA technical drawings
- Elevation Dome, floor plans, room plan, areas calculation
- Wall concerte construction, all wall layers constructions.
- Foundation & Flooring Construction
- Interior wall decoration, wall, floor, plates for all rooms.
- Interior & exterior lighting concept scheme
- Plumbing and sewage disposal. Indoor instaliation schemes
- Heating, ventilation and air conditioning,instalation schemes
-

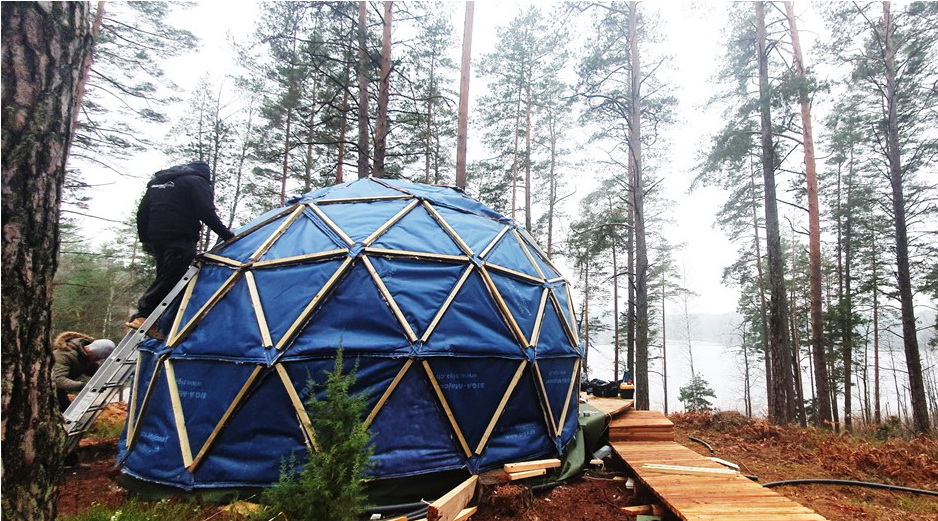

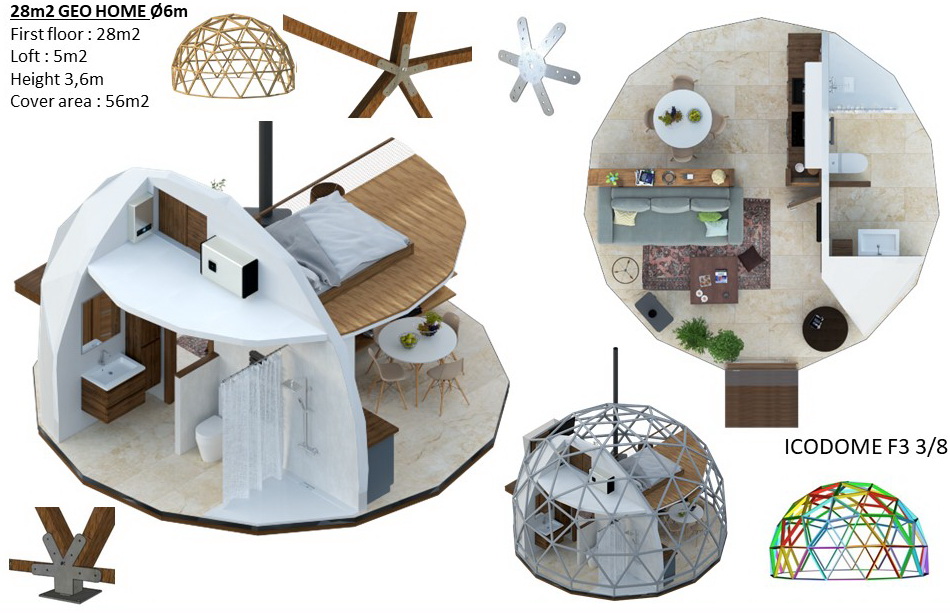

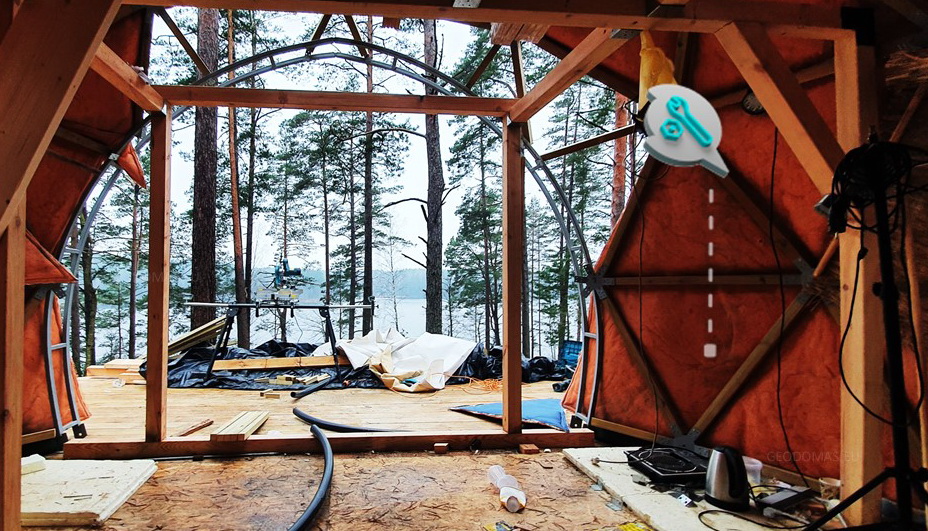

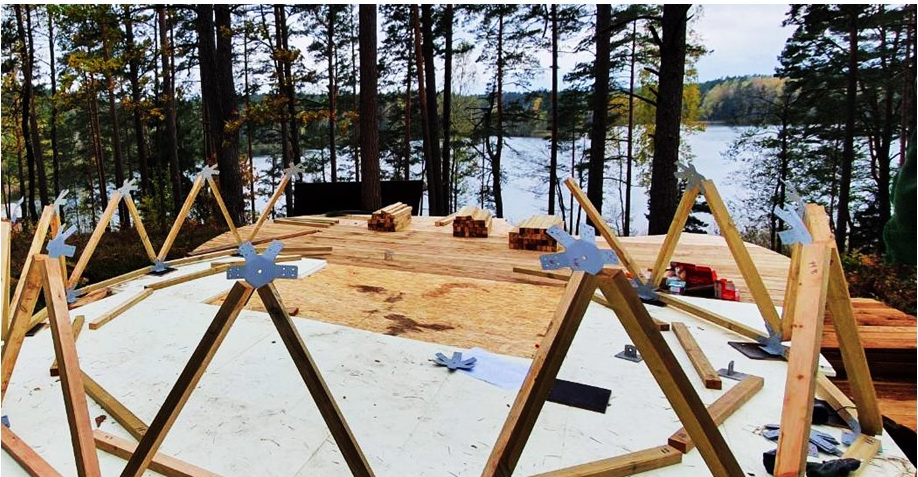

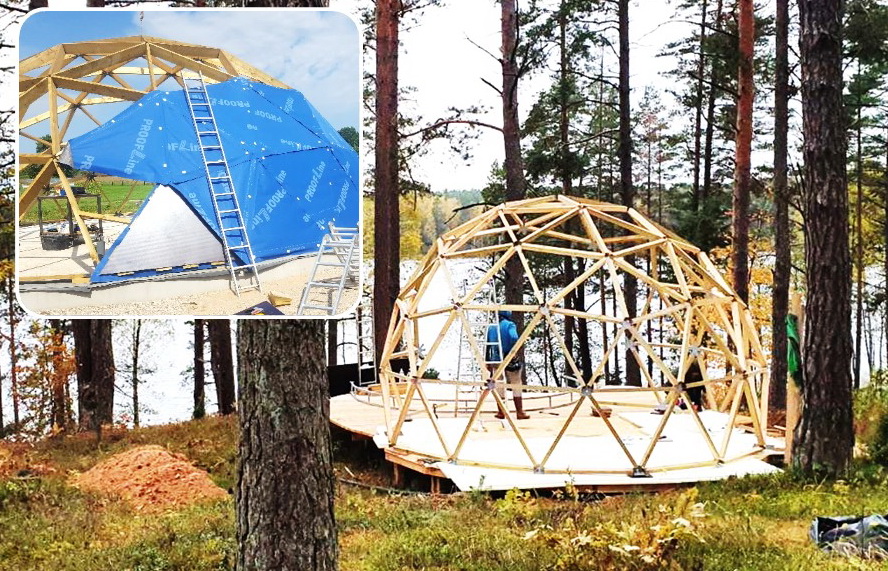

FRAME SYSTEM | STRUCTURAL FRAME
Ease of Construction Without Skilled Labor or Heavy-lift Equipment — All wooden components of a CBI-Geodesic Dome are pre-engineered or pre-cut and pre-drilled to exacting specifications, and color-coded to make it easy for unskilled people to assemble them with precision and confidence.
The construction carcass is produced from wooden parts for wall & aluminium frame for window, Steel connection hubs: STAR type – 4-5-6 directions, powder painted. A set of instll kit.
Only basic hand tools are required to assemble the basic kit. Everything is precision cut and color coded for ease of assembly, and comes with complete blueprints and instructions. Only regular every day tools are needed and our complete instruction manuals make it a very rewarding and enjoyable experience. We do all the hard stuff, so you reap all the benefits. Once the kit is assembled, everything else is standard construction.
Each geodesic dome structure is designed according to load calculations. This in turn ensures safety and durability. Our structural engineers can calculate the maximum loads of the equipment suspended by the geodesic dome of regional norms
-

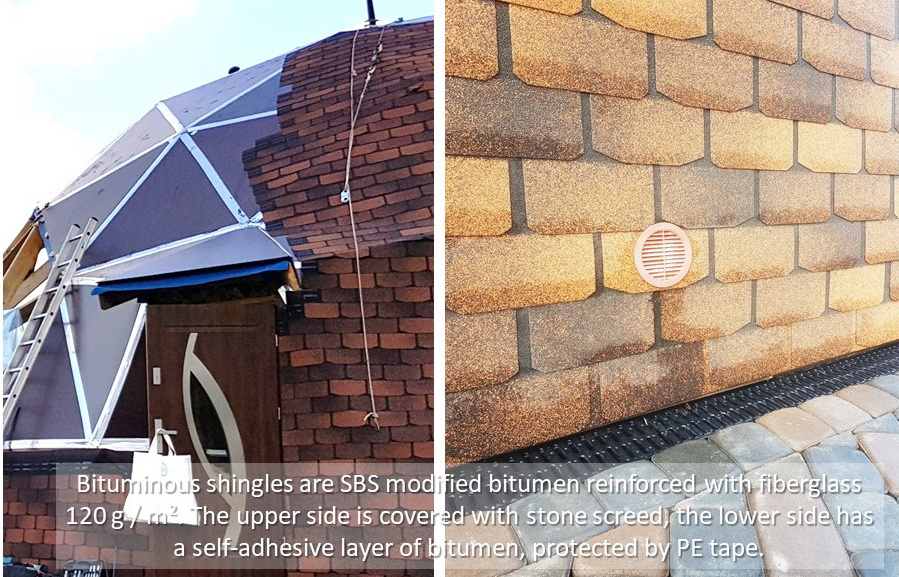

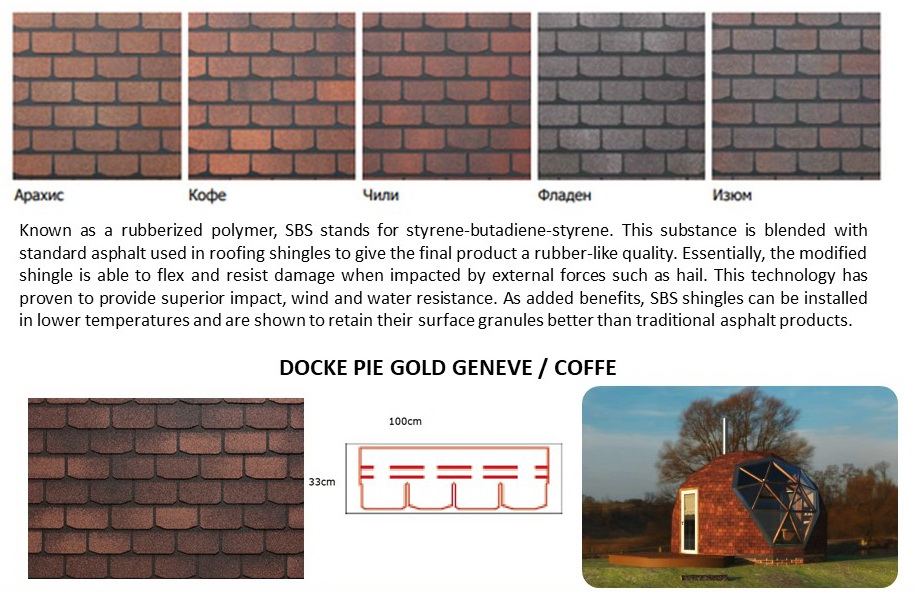

DOCKE PIE | ROOF COVER SET
Known as a rubberized polymer, SBS stands for styrene-butadiene-styrene. This substance is blended with standard asphalt used in roofing shingles to give the final product a rubber-like quality. Essentially, the modified shingle is able to flex and resist damage when impacted by external forces such as hail. This technology has proven to provide superior impact, wind and water resistance. As added benefits, SBS shingles can be installed in lower temperatures and are shown to retain their surface granules better than traditional asphalt products.

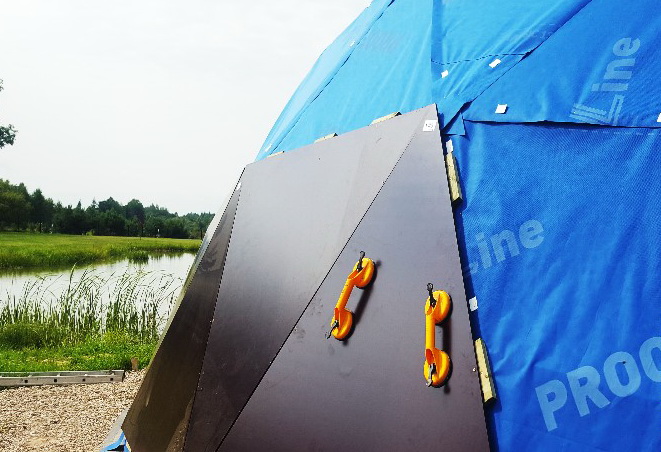

COSMO TECH PANEL | ROOF COVER
Triangular shaped panels, façade slabs COSMO PANEL 25mm (Basic option), PVC-XPS-PVC structure of panels. Fastening elements for the slabs with a gasket. Installation glue set for seal treatment. White facade sealant-glue for the finishing and decorative works. A tin perimeter window sill for the waterproofing of the foundation. Gravitational ventillation system at the lower perimeter of the dome. A full installation set, and documentation for facade assembly.
-
DOUBLE GLASS PANELS
SUN CONTROL GLASS PANELS | Glass façade : 6mm Glass – 18mm ARGON90% – 44,1 EN2PLUS laminated. Triangular windows glass laminated packet parts for corner roofs glass facades. The exterior glass is tempered, the thermo-frame has high moisture resistance, the internal 2 glass layers are laminated, safe glass. SOLAR CONTROL Glass packet with thermo coating for better heat insulation of the packet.
- Packet thickness: 6mm/16mm/4+4mm (30mm).
- Thermal conductivity UG: 1,12 W/m2.
- A set of bands for seal insulation. Installation glue set for seal treatment.
- A set of tin finishing parts with seal waterproofing.
- Seam insulation materials.
- A full installation set, and documentation for facade assembly.
- All elements marking and special glass packaging.
TRIPLEX GLAZED GLASS PANELS
Triangular windows glass laminated packet parts for corner roofs glass facades. The exterior glass is tempered, the thermo-frame has high moisture resistance, the internal 2 glass layers are laminated, safe glass. Glass packet with thermo coating for better heat insulation of the packet. SOLAR CONTROL packet thickness: 6mm/16mm/4/16/4+4mm (50mm). Thermal conductivity UG: 0,5-0,8 W/m2. A set of bands for seal insulation. Installation glue set for seal treatment. A set of tin finishing parts with seal waterproofing. Seam insulation materials. A full installation set, and documentation for facade assembly.
ABOUT GLAZED WINDOWS :
-
-

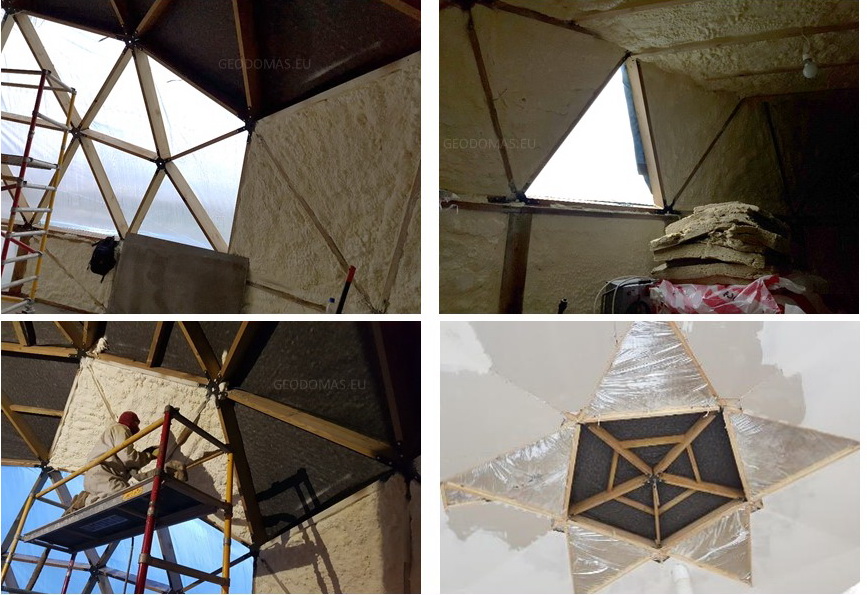

PU spray-insulation . Maximum thermal insulation efficiency
The sprayed PU insulation forms a solid and seamless layer without the power-wasting thermal bridges. PU insulation features low heat conduction unrivalled by any other typical insulation material. Thin layer and low weight of insulation material
Thanks to the “liquid” application critical, hard to reach or arched areas can easily be thermal insulated and there is no need for cutting. Excellent adherence to any base
PU insulation adheres like a second skin and fits for almost any base, for example, slate, trapezium steel sheets or wood panels. Easy transportation and lower need for storage area
Hard, stable and closed-pored IZOputos® undoubtedly improves construction and service time of any building.
Reliable and qualified application
-
Multilayered thermal insulation of dome wall, with air chambers. Thermal insulation membrane
Basic Set : Thermo 13 layer (0,033W/m2K). Parts for internal insulation of the dome wall, waterproof material.
It is thin, multi-reflector, multi-layer insulation system. Reflective thermo insulation material is produced using the technology that NASA has developed to protect the spacecrafts from extreme external factors (solar radiation and frost).
- Insulation saves energy because it reduces all types of heat: conduction, convection, radiation, heat, humidity infiltration;
- Stability, insulation parameters in contrast to traditional insulating materials, there are no splits, material is continuous;
- Energy saving – insulation saves up to 30% of the energy for heating and cooling;
- Fast assembly – large rolls, simple system, combining consistent levels and flexibility of the material enables efficient assembly of the product in all conditions;
- THERMIC.PRO- resistant to chemicals, rodents and other pests, as well as most solvents that are used in construction;
- Reflectivity: 95%
- Thermal conductivity: λ = 0,030 W / (mK)
- Blocks Cellular 3G,4G,5G & WIFI Signals
-
